Inverted Type Wire Drawing Machine with Large Capacity Continuous Working and Long Service Life for Steel and Non-Ferrous Wires

1
MOQ
Inverted Type Wire Drawing Machine with Large Capacity Continuous Working and Long Service Life for Steel and Non-Ferrous Wires
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Diámetro de entrada: 38mm
Diámetro de salida: 6mm
Voltaje: 380V
Fuerza: 55w
Dimensiones: 2500*2000*2500mm
Peso: 8000 kg
Diámetro del cabrestante: 1400 mm
Cable de entrada máx.: Ø38mm
Cable de entrada mínimo: Ø6mm
Velocidad de trazado: 30 m/min.
Compresibilidad: 25%
Potencia del motor: 75-110kw
Dimensiones generales: 3×2,3×2,6M
Componentes principales: Motor
Año: 2022
Resaltar:

Long Service Life Wire Drawing Machine

,

Large Capacity Inverted Type Wire Drawing Machine

,

Continuous Working Vertical Drop Type Wire Drawing Machine
Información básica
Lugar de origen: Jiangsu, China
Pago y Envío Términos
Descripción de producto

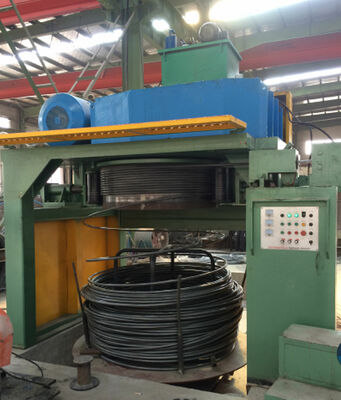

Inverted/Vertical Drop Type Wire Drawing Machine
Product Overview
The inverted type wire drawing machine is engineered for large capacity and continuous operation. This robust system integrates both wire drawing and wire coiling processes, making it suitable for processing high, medium, and low-carbon steel wire, profile wire, stainless steel wire, and thick non-ferrous metal wire. The machine features a heavy-duty large recoiler system that facilitates easy wire unloading.
Inverted Type Wire Drawing Machine with Large Capacity Continuous Working and Long Service Life for Steel and Non-Ferrous Wires 0 Inverted Type Wire Drawing Machine with Large Capacity Continuous Working and Long Service Life for Steel and Non-Ferrous Wires 1 Inverted Type Wire Drawing Machine with Large Capacity Continuous Working and Long Service Life for Steel and Non-Ferrous Wires 2 Inverted Type Wire Drawing Machine with Large Capacity Continuous Working and Long Service Life for Steel and Non-Ferrous Wires 3
Product Specifications
Inverted Type Wire Drawing Machine with Large Capacity Continuous Working and Long Service Life for Steel and Non-Ferrous Wires 4 Inverted Type Wire Drawing Machine with Large Capacity Continuous Working and Long Service Life for Steel and Non-Ferrous Wires 5 Inverted Type Wire Drawing Machine with Large Capacity Continuous Working and Long Service Life for Steel and Non-Ferrous Wires 6
Model Unit 1400 1200 1000 800
Capstan diameter mm 1400 1200 1000 800
Maximum diameter of inlet wire mm Ø38 Ø28 Ø20 Ø12
Minimum diameter of inlet wire mm Ø12 Ø12 Ø6 Ø6
Drawing speed M/min 30 40 50 70
Designed compressibility % 25 25 25 25
Motor power kw 75-110 55-75 45-55 30-37
Weight kg 10000 8000 6000 5000
Overall dimensions M 3×2.3×2.6 2.8×2.3×2.6 2.5×2×2.5 2.3×1.5×2.5
