2105A Model Diesel Engine Water-Cooled Style 2105A-3A 2105A-6 2105A-33A

36
MOQ
$1,150
Precio
2105A Model Diesel Engine Water-Cooled Style 2105A-3A 2105A-6 2105A-33A
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Ataque: 4 tiempos
Cilindro: 2
Estilo frío: Refrigerado por agua
comienzo: Otro
Dimensión (largo* ancho* alto): 1140x620x1070mm
peso: 420
Garantía: 1 año
desplazamiento: 2251cc
Estándar de emisión: 2251cc
Potencia/velocidad nominal: 1500RPM
informe de prueba de maquinaria: Proporcionó
video-inspección-saliente: Proporcionó
componentes centrales: Motor
puntos clave de venta: Fácil de operar
potencia(w): 24HP
Sistema inicial: arranque manual
Resaltar:

2105A model diesel engine water-cooled

,

diesel engine with water-cooled system

,

2105A-3A diesel engine water-cooled
Información básica
Lugar de origen: Jiangsu, China
Nombre de la marca: DURA
Certificación: as per customer's request
Pago y Envío Términos
Descripción de producto
Product Description
Agricultural diesel engine units model 2105A-6, 2105A-3A and 2105A-33A are three variants of 2105A diesel engine. They are applied as drive power for irrigation and drainage, processing machines of products from farm and sideline, etc.

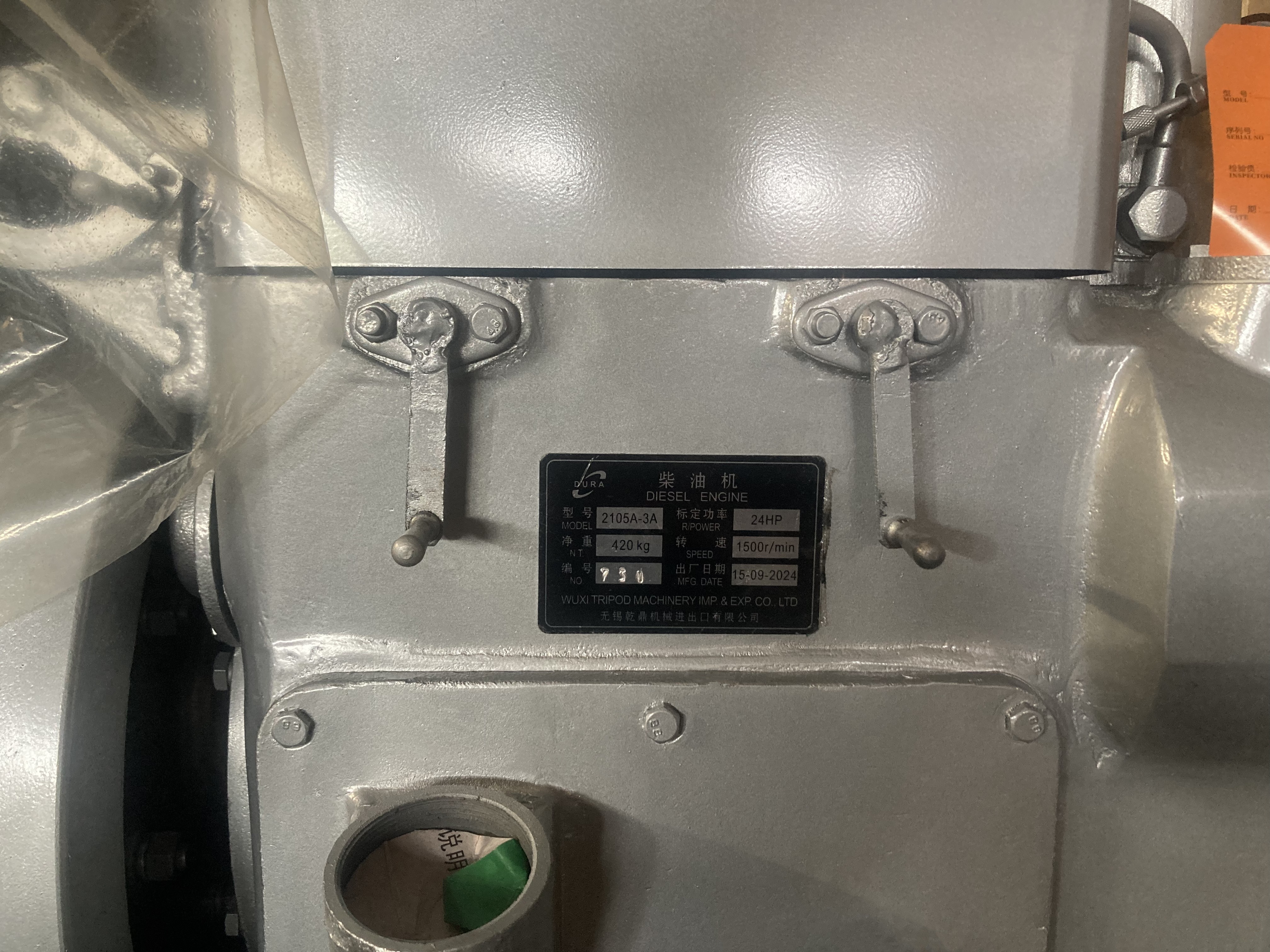

2105A Model Diesel Engine Water-Cooled Style 2105A-3A 2105A-6 2105A-33A 0

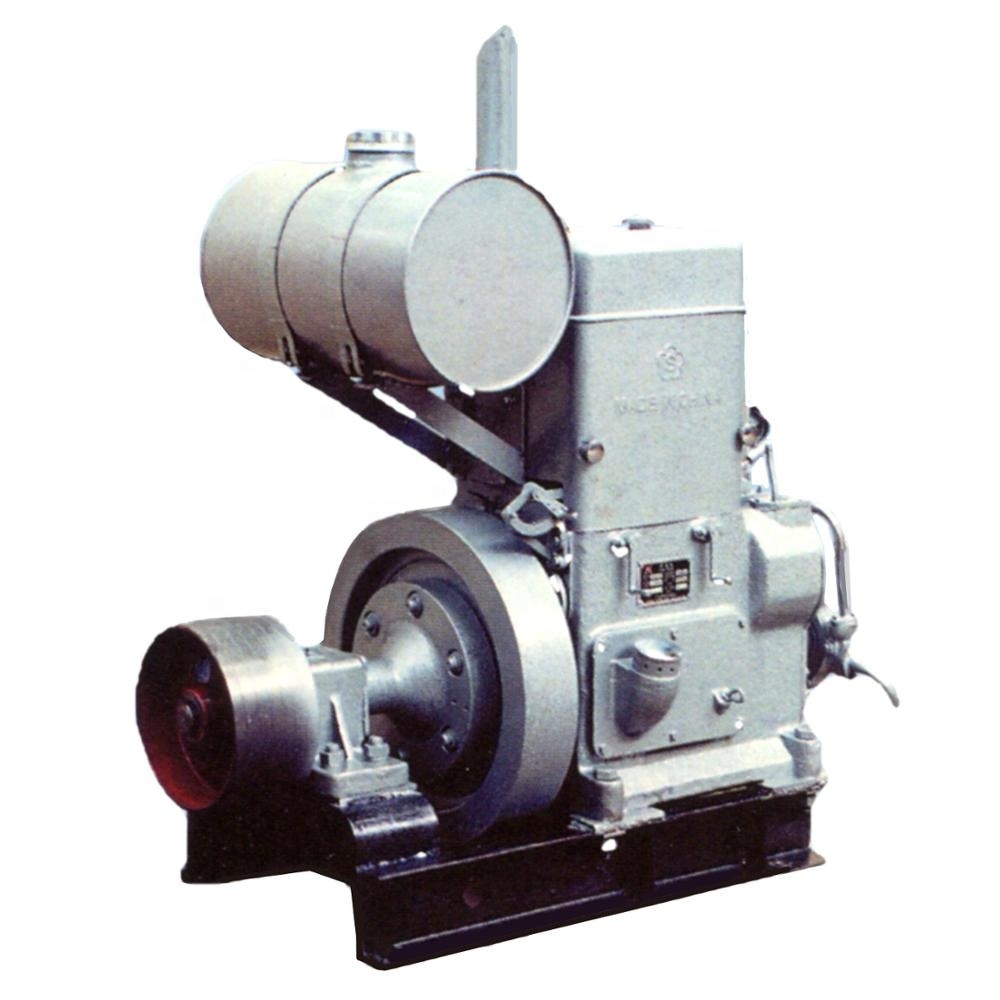

2105A Model Diesel Engine Water-Cooled Style 2105A-3A 2105A-6 2105A-33A 2

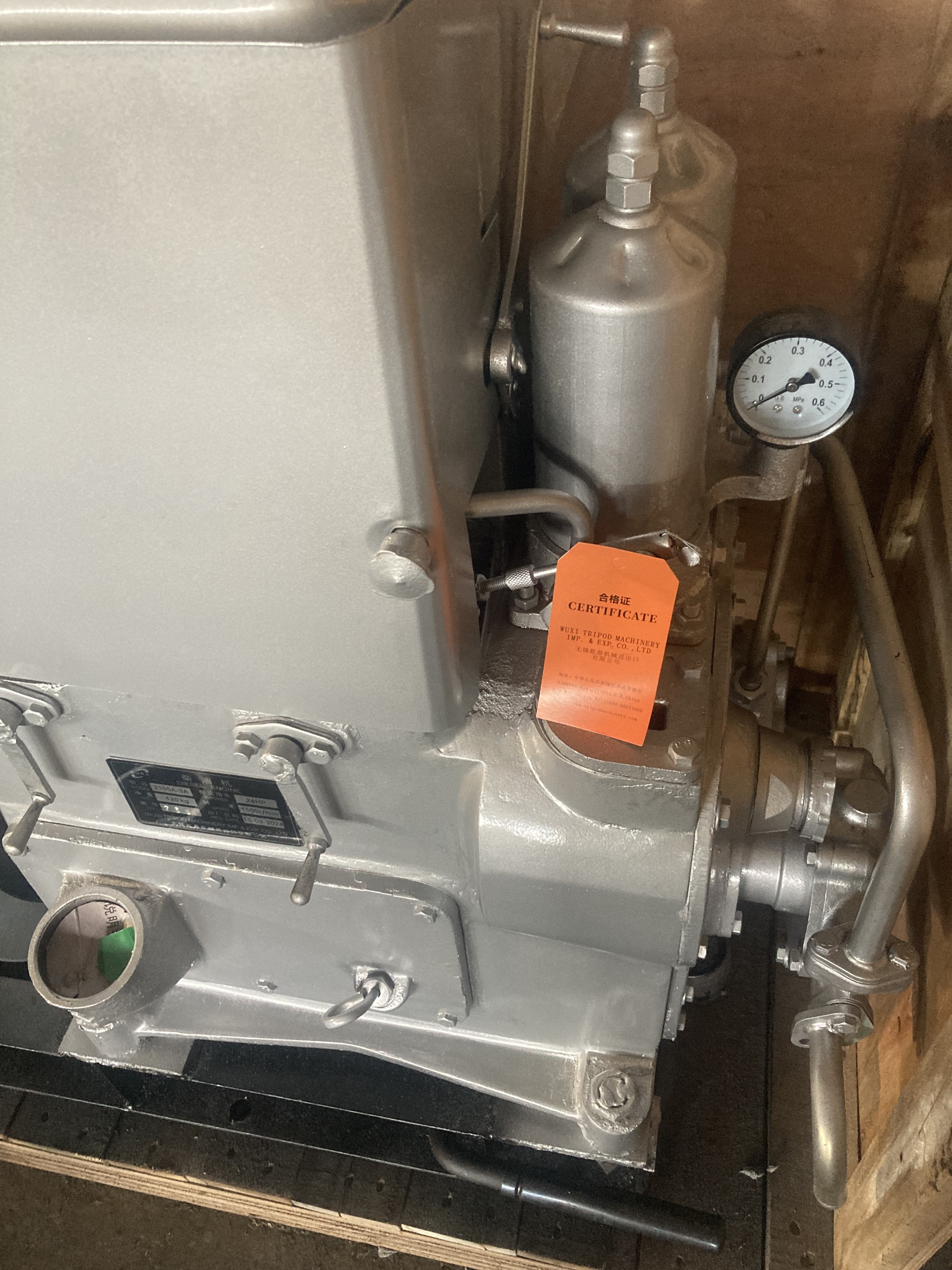

2105A Model Diesel Engine Water-Cooled Style 2105A-3A 2105A-6 2105A-33A 4

Features

* Advanced technique after long-time and rich experiences of production * Compact, rigid and reliable, easy to operate and maintain * With separate bearing assembly and drive pulley * With sliding-type mounting frame.
Model
2105A-3A
2105A-6
2105A-33A
Type
Vertical,4-Stroke,Swirl combustion chamber
Cylinder number
2
2
2
Bore(mm)
105
105
105
Stroke(mm)
130
130
130
Compression Ratio
20:1
20:1
20:1
Rated Rotation(r/min.)
1500
1500
1500
Rated Output(kw)
17.65
17.65
17.65
Over-load Output(kw)
19.41
19.41
19.41
Specific Fuel Consumption
(g/kw.h)
251.6
251.6
251.6
Specific Oil Consumption
(g/kw.h)
2.04
2.04
2.04
Cooling System
Open-type, water-cooling


Method of Starting
Manual starting


Net Weight(kg)
430
380
430
Dimensions(L x W x H)(mm)
1140 x 620 x 1070
1030 x 620 x 1070
1140 x 620 x 1070

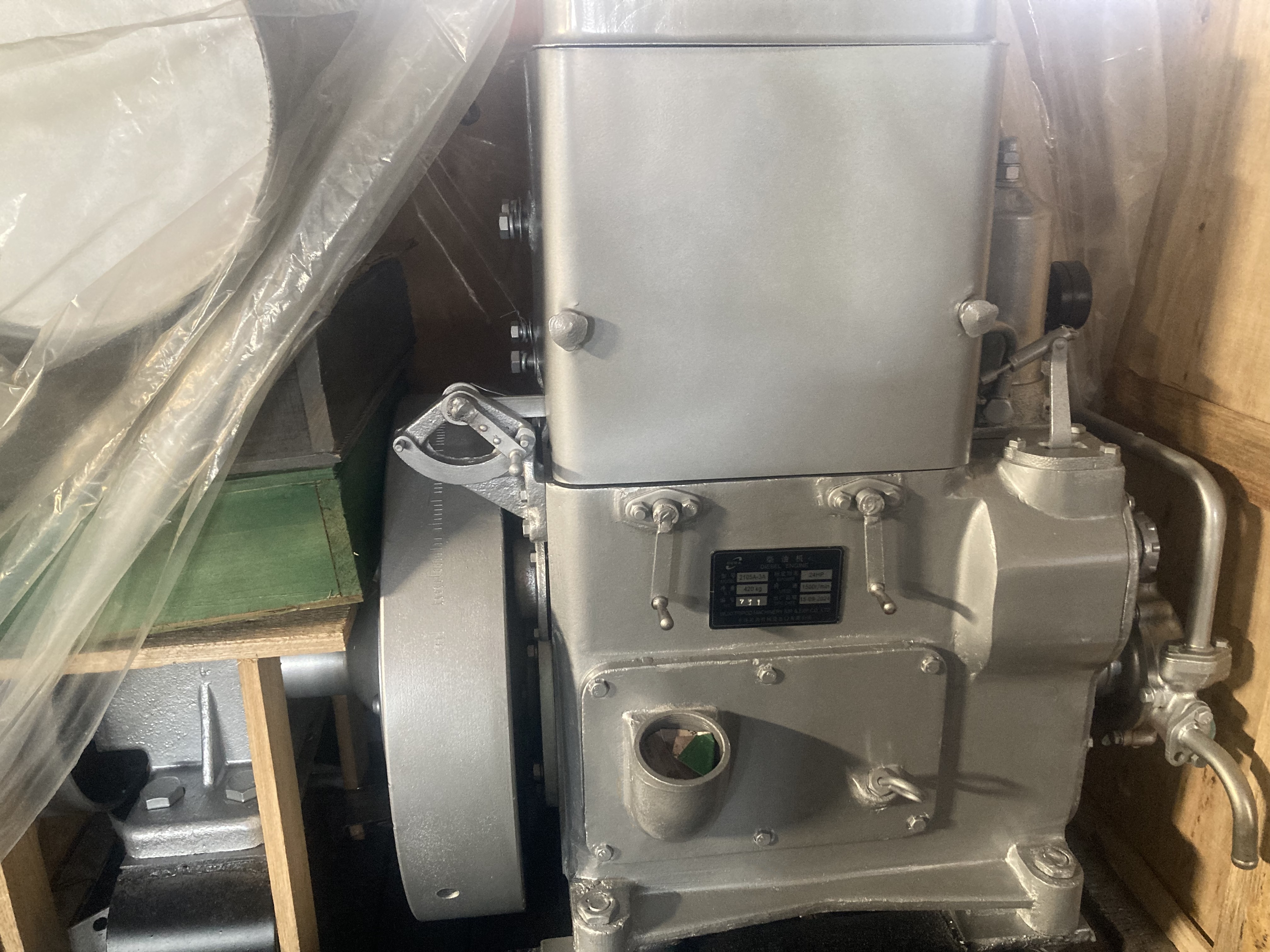

2105A Model Diesel Engine Water-Cooled Style 2105A-3A 2105A-6 2105A-33A 6
2105A Model Diesel Engine Water-Cooled Style 2105A-3A 2105A-6 2105A-33A 8
2105A Model Diesel Engine Water-Cooled Style 2105A-3A 2105A-6 2105A-33A 10
2105A Model Diesel Engine Water-Cooled Style 2105A-3A 2105A-6 2105A-33A 12
2105A Model Diesel Engine Water-Cooled Style 2105A-3A 2105A-6 2105A-33A 14
Size Information
One 20’ GP container fits to load 36pcs of 2105A-3A/2105A-6/2105A-33A.
Related Products
Packing&Shipping
Plywood cases.
After Sales Service
2105A Model Diesel Engine Water-Cooled Style 2105A-3A 2105A-6 2105A-33A 16

Pre-Sales Service

* Inquiry and consulting support.
 * Sample testing support.
 * View our Factory.
2105A Model Diesel Engine Water-Cooled Style 2105A-3A 2105A-6 2105A-33A 18

After-Sales Service

* Training how to instal the machine, training how to use the machine.
 * Engineers available to service machinery overseas.
